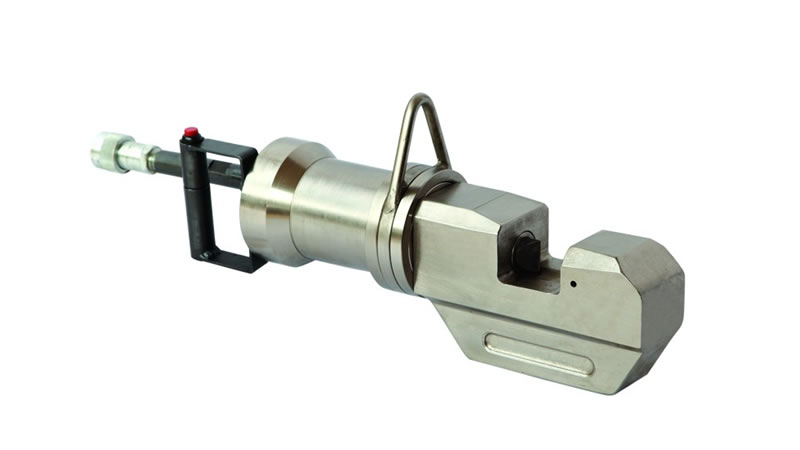

RC系列圓鋼液壓剪
RC series round steel hydraulic shears
產品特點：
Product characteristics:
1.圓鋼液壓剪是一種高壽命圓鋼剪斷工具，適用于各種類型的高速線材廠
Round steel hydraulic shear is a kind of high-life round steel shear tool, which is suitable for various types of high-speed wire mills.
2.該設備采用純正德國部件，配用專用合金鋼剪刃及專用液壓泵
The equipment is made of pure German components with special alloy steel shears and special hydraulic pumps.
3.可長時間保持最佳工作狀態，能在2.5秒內切斷直徑為32mm且硬度HRC38的合金鋼，
It can keep the best working condition for a long time and cut off the alloy steel with diameter of 32 mm and hardness of HRC38 in 2.5 seconds.
4.切斷圓鋼后，活動刀頭可自動復位，整個過程安全，可靠，操作方便。
After cutting round steel, the movable cutter head can be automatically reset. The whole process is safe, reliable and easy to operate.
RC系列圓鋼液壓剪技術參數：
-
系統選型表
RC系列圓鋼液壓剪選型表：
RC series round steel hydraulic shear selection table:
型號
Model
剪切形式
Cutting type
出力T
output
剪切最大直徑
Din
外形尺寸
Measurement
剪刃型號
Blade type
重量kg
Wt
A
B
C
D
E
RC140
錯剪式
12
14
397
247
22
144
-
EG0140
11
RC150
對剪式
20
16
420
200
25
105
90
EG0150
14
RC350
對剪式
35
25
580
240
30
128
122
EG0350
34
RC450
錯剪式
45
32
580
246
38.5
138
114
EG0450
48
