詳細信息

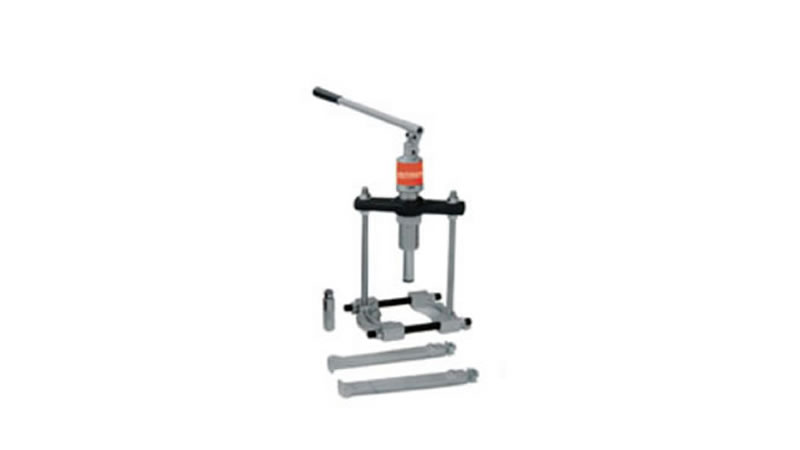

UK系列螺桿/直爪型拉馬套裝
UK Series Screw Claw Type Rama Suit
產品特點：
Product characteristics:
這是一套完美組合的拔輪器系統，它包括:液壓主油缸，拉爪，拉桿，二片式壓盤，是拆卸壓力配合零件的理想工具，如:軸瓦、軸承、軸子、齒輪及皮帶輪的拆卸，特別是軸承等工作于機體的間隙極為狹小時，壓盤組合可以發揮其強大功效，縮短停機時間。
This is a perfect combination of pulley system, including: hydraulic main cylinder, claw, tie rod, two-piece pressure plate, is the ideal tool for disassembling pressure matching parts, such as: bush, bearing, axle, gear and pulley disassembly, especially bearing working in the body clearance is very small, pressure plate combination can play a role. Its powerful effect can shorten the downtime.
如果你們有更多關于液壓扳手的問題，也可以搜索http://www.nzmqiuq.cn/或者撥打13871243450，德國進口液壓扳手廠家普朗特將為您提供最專業的解答。
-
系統選型表
UK系列螺桿直爪型拉馬套裝技術參數
UK系列拉馬套裝選型表：
UK Series Rama Suit Selection Table:
型號
Model
負載T
load
拉拔深度mm
Drawing depth
拉拔外徑mm
Remove diameter
行程mm
Trip
重量kg
weight
UK-605
6
300/190
235/210
82
13.2
UK-605E
10
330/220
235/210
82
13.3
UK-805
8
300/210
235/220
82
14.1
UK-805E
12
330/240
235/220
82
14.1
