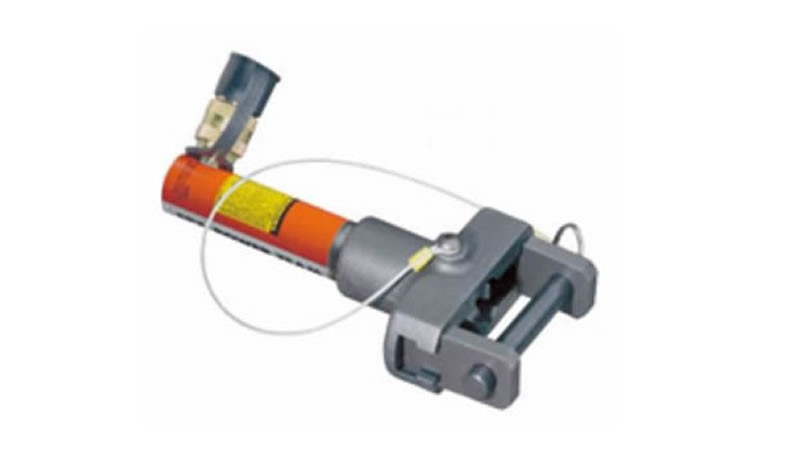

HFS系列管道法蘭分離器
HFS Series Pipeline Flange Separator
產品特點:
Product characteristics:
利用管道法蘭分離器，您無需再將時間和精力浪費在用鐵錘和鑿子的傳統方法來分離管道法蘭，為獲得最大的分離力，最好使用成對的法蘭分離器
With the pipe flange separator, you don't need to waste time and energy separating the pipe flange with the traditional method of hammer and chisel. In order to obtain the maximum separation force, it's better to use paired flange separators.
標準60度楔頭適用于大部分的法蘭，另有30度薄型和60度鈍型可選
Standard 60 degree wedges are suitable for most flanges, with alternatives of 30 degree thin and 60 degree blunt.
HFS3A設計用于總厚度和最大分離量不大于3”的法蘭，且其法蘭螺栓直徑不小于11/16”,在法蘭總厚度和最大分離量不大于6”,且法蘭螺栓直徑不小于13/16”的法蘭上可應用HFS6A。
HFS3A is designed for flanges with total thickness and maximum separation not greater than 3", and the diameter of flange bolts is not less than 11/16", and the total thickness and maximum separation amount of flange bolts are not greater than 6", and the diameter of flange bolts is not less than 13/16", HFS6A can be applied to flanges.
如果你們有更多關于法蘭分離器、液壓扳手的問題，也可以搜索http://www.nzmqiuq.cn/或者撥打13871243450，德國進口液壓扳手廠家普朗特將為您提供最專業的解答。
-
系統選型表
HFS系列管道法蘭分離器選型表
Type Selection Table of HFS Series Pipeline Flange Separator。
型號
Model No
油缸出力T
Capacity
標準楔頭形式
Standard Wedge Type
可選楔頭
Optional wedges
最小法蘭開口
Minimum flange opening
最大法蘭開口
Maximum flange opening
重量kg
Weight
30°
薄型
60°
鈍型
60°標準
60°鈍型
30°
60°標準
60°鈍型
30°
HFS3A
5
60°楔頭
350823 350822
1.6 25.4 1.6
38.1 38.1 18.3
4.1
HFS6A
10
60°楔頭
350549 350550
1.6 38.1 1.6
50.8 50.8 24.6
8.2
