詳細信息

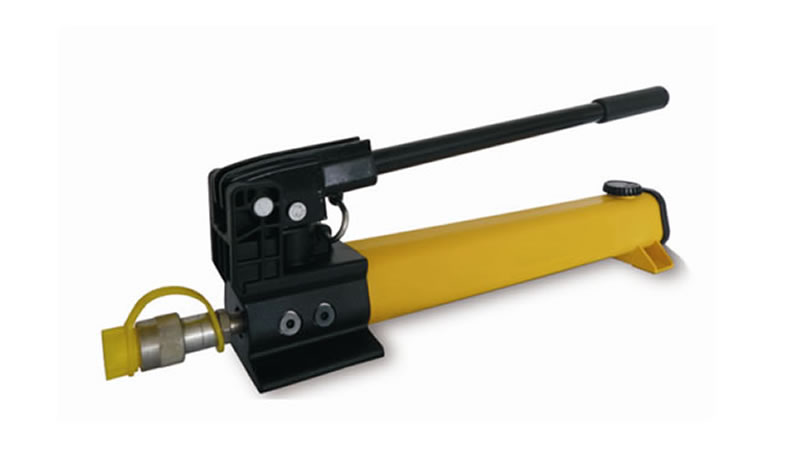

P系列超輕型手動泵產品特點：
Product characteristics:
1.輕型手動泵輕巧緊湊的設計 ，
Lightweight and compact design of manual pump.
2.經久耐用強化工程塑料油箱和尼龍包封的鋁制泵體耐腐蝕能力強
Durable reinforced engineering plastic tank and nylon encapsulated aluminium pump body have strong corrosion resistance
3.雙速操作，手柄行程比單速操作時減少78% ，手柄省力，降低操作者勞動強度 ，
Two-speed operation, the stroke of the handle is 78% less than that of the single-speed operation, which saves labor and reduces the labor intensity of the operator.
4.可鎖手柄和輕巧的結構便于攜帶 ，
Lockable handle and lightweight structure are easy to carry.
5.油箱容量大，可適用于較多型號的油缸和工具 ，
The tank has large capacity and can be applied to many types of cylinders and tools.
6.特別手柄保證操作者安全 ，
Special handle ensures operator safety.
7.內置安全閥，用于過載保護。
Built-in safety valve for overload protection.
如果你們有更多關于超輕手動泵、液壓扳手的問題，也可以搜索http://www.nzmqiuq.cn/或者撥打13871243450，德國進口液壓扳手廠家普朗特將為您提供最專業(yè)的解答。
-
系統(tǒng)選型表
P系列超高壓手動泵選型表：
Type Selection Table of P Series Ultra High Pressure Manual Pump:
型號
Model
可用油量（cm3）
Available oil quantity
泵的類型
Types of pumps
壓力等級MPA
Pressure grade
每行程排油量（cm3）
Oil drain per stroke
手柄操作力（kg）
Handle power
外形尺寸（mm）
Outline size
重量（kg）
weight
LP
HP
LP
HP
P141
329
雙速
13
700
3.6
0.9
35.4
336*95*143
2.4
P392
901
雙速
14
700
11.3
2.47
42
533*120*177
4.1
